Build Once, Probe Many: Hash Table Caching in Velox

TL;DR

Broadcast joins are common in analytical workloads because they avoid repartitioning both inputs when one side is small enough to replicate across workers. Compared with partitioned hash or sort-merge joins, they are often more efficient because the large probe side remains in place, avoiding its substantial network and storage shuffle cost.

In materialized execution engines such as Presto-on-Spark and Spark with Gluten, build-side splits are planned for every join task. Without additional coordination, each task reads the same data and constructs an identical hash table. Velox's HashTableCache replaces this build-per-task behavior with a build-once, reuse-many protocol within each worker process, delivering significant cost savings for broadcast-join workloads by eliminating repeated table construction and build-side I/O.

The build-side tax

Broadcast data follows a write-once, read-many I/O pattern. Every task that rebuilds the table must read the build side, compute hashes, populate a row container, and allocate a hash index. At large task counts, concurrent reads can overwhelm the storage or exchange service, leading to throttling and backoff. Tasks then stall while reserved worker resources remain idle.

The CPU cost is also significant when the broadcast side contains millions of rows or produces a hash table measured in gigabytes. Repeating the same work on every task wastes both compute and memory bandwidth.

Overall design

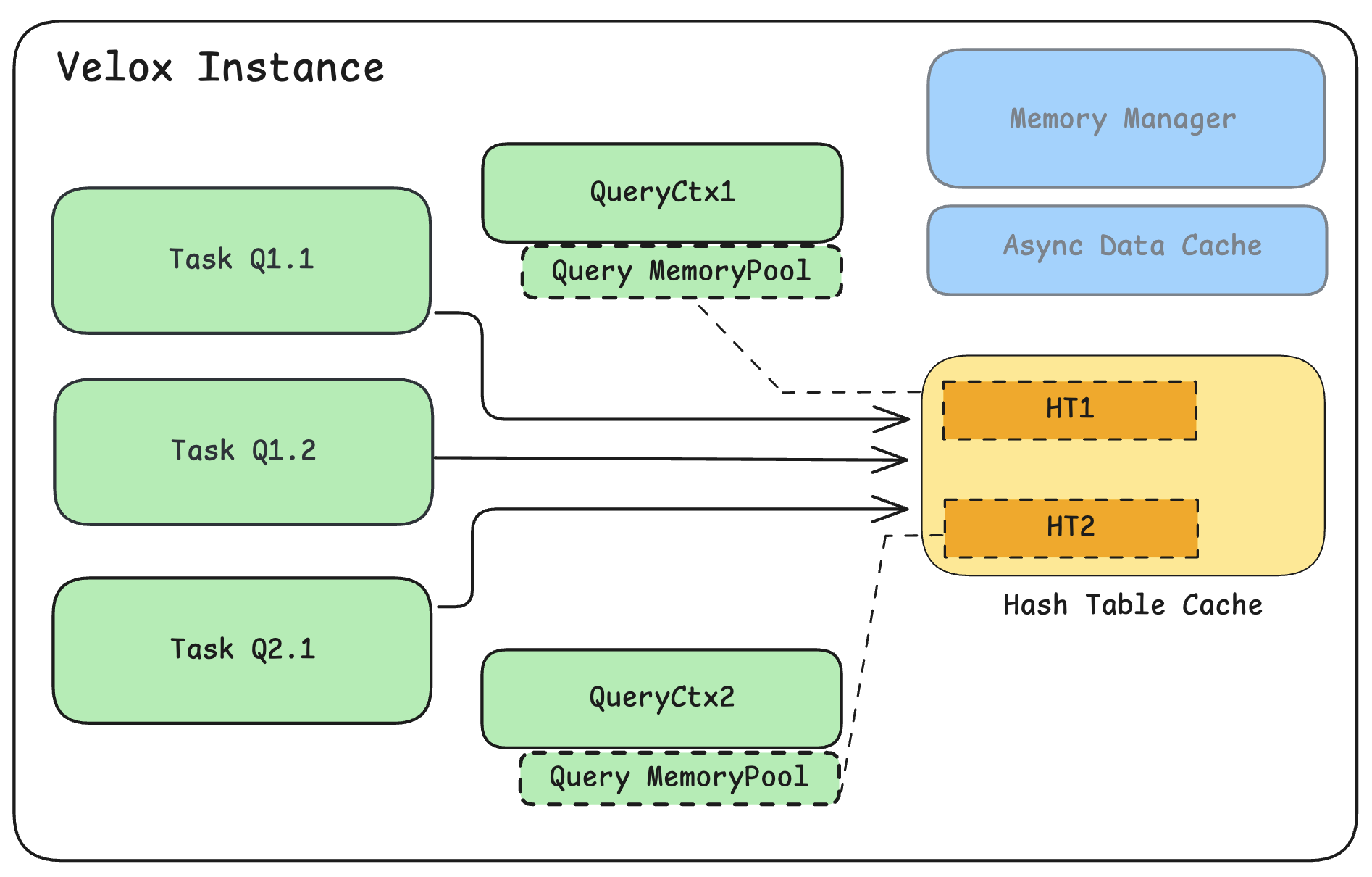

HashTableCache is a process-wide singleton that stores completed hash tables and coordinates tasks attempting to build the same table. For Velox-managed builds, entries are keyed by queryId:planNodeId unless the engine supplies an explicit stable cache key. Exactly one task becomes the builder; concurrent tasks wait for that build, and tasks arriving after completion reuse the table immediately.

HashTableCache coordinates table construction and reuse across tasks in one worker process.

The design has three main components:

1. HashTableCache: Stores entries and serializes builder election, publication, and removal.
2. HashTableCacheEntry: Holds the table, build-coordination state, and a dedicated memory pool.
3. HashBuild integration: Checks the cache during initialization, builds or waits, and publishes the completed table to both the cache and the local join bridge.

Cache structure

The singleton maps stable string keys to shared cache entries:

class HashTableCache {
 private:
  std::mutex lock_;
  std::unordered_map<
      std::string,
      std::shared_ptr<HashTableCacheEntry>> tables_;
};

Each entry contains the cached data and its coordination metadata:

Field	Description
cacheKey	Stable identifier used to look up the entry.
builderTaskId	Task elected to build the table.
tablePool	Query-scoped leaf pool used for table allocations.
table	Completed BaseHashTable, null until publication.
hasNullKeys	Whether the build side contained null join keys.
buildComplete	Atomic flag indicating that the table is ready.
buildPromises	Promises used to notify tasks waiting for the build.

All cache-map decisions are made under one mutex. The lock protects only map lookups, insertions, removals, and promise creation; it is never held while reading input, allocating table memory, building the table, or waking waiters.

Cache API

Velox-managed builds use get(), put(), and drop(). The exist() and add() methods support externally built tables, such as tables registered by Gluten.

get()

Every cache-enabled HashBuild operator calls get() during initialization. The method elects a builder or registers the caller as a waiter while holding the cache mutex:

get(key, taskId, queryCtx, future):
    lock

    if key is absent:
        create incomplete entry
        set builderTaskId = taskId
        create query-scoped tablePool
        register QueryCtx cleanup callback
        return entry                         // builder

    if entry.buildComplete:
        return entry                         // late arrival

    if entry.builderTaskId == taskId:
        return entry                         // another builder driver

    create promise/future pair
    entry.buildPromises.push_back(promise)
    return entry and future                  // waiter

When creating an entry, get() adds tablePool as a leaf child of the query pool. All drivers in the builder task allocate their partial tables from this pool through HashBuild::tableMemoryPool(). The method also registers a QueryCtx release callback that removes the cache entry when the query ends.

Drivers from the elected builder task do not wait on the cache. They continue through the regular intra-task build path and coordinate with their peers via HashJoinBridge.

put()

The last driver in the builder task merges the partial tables and calls put() to publish the result:

put(key, table, hasNullKeys):
    lock
    assert entry exists and is incomplete
    entry.table = table
    entry.hasNullKeys = hasNullKeys
    entry.buildComplete = true
    promises = move(entry.buildPromises)
    unlock

    for each promise:
        promise.setValue()                   // wake outside the lock

Moving the promises out of the entry lets put() release the cache mutex before fulfilling them. Resumed drivers and future callbacks therefore never run while the global cache lock is held.

drop()

drop() removes an entry during query cleanup or when a builder abandons an incomplete build:

drop(key):
    lock
    entry = move(tables[key])
    tables.erase(key)
    unlock

    promises = move(entry.buildPromises)
    entry.table.reset()                      // release outside the lock
    for each promise:
        promise.setValue()                   // unblock failed-build waiters

Table destruction and promise fulfillment occur outside the mutex. This keeps deallocation and scheduler activity out of the cache's critical section.

exist() and add()

External systems can check for and register already completed tables:

exist(key):
    lock
    return key exists and entry.buildComplete

add(key, table, hasNullKeys, tablePool):
    construct completed entry
    lock
    assert key does not exist
    tables[key] = entry

Unlike put(), add() does not complete an entry previously reserved by get(). It creates a new completed entry, so duplicate keys are rejected.

Enabling hash table caching

Hash table caching is opt-in on HashJoinNode. Engines should enable it only for broadcast joins whose probe path treats the shared table as immutable.

auto joinNode =
    core::HashJoinNode::Builder()
        .id(planNodeIdGenerator->next())
        .joinType(core::JoinType::kInner)
        .nullAware(false)
        .leftKeys({leftKeyField})
        .rightKeys({rightKeyField})
        .left(probeNode)
        .right(buildNode)
        .outputType(outputType)
        .useHashTableCache(true)
        .build();

When useHashTableCache is false, which is the default, the join follows the regular build-per-task path.

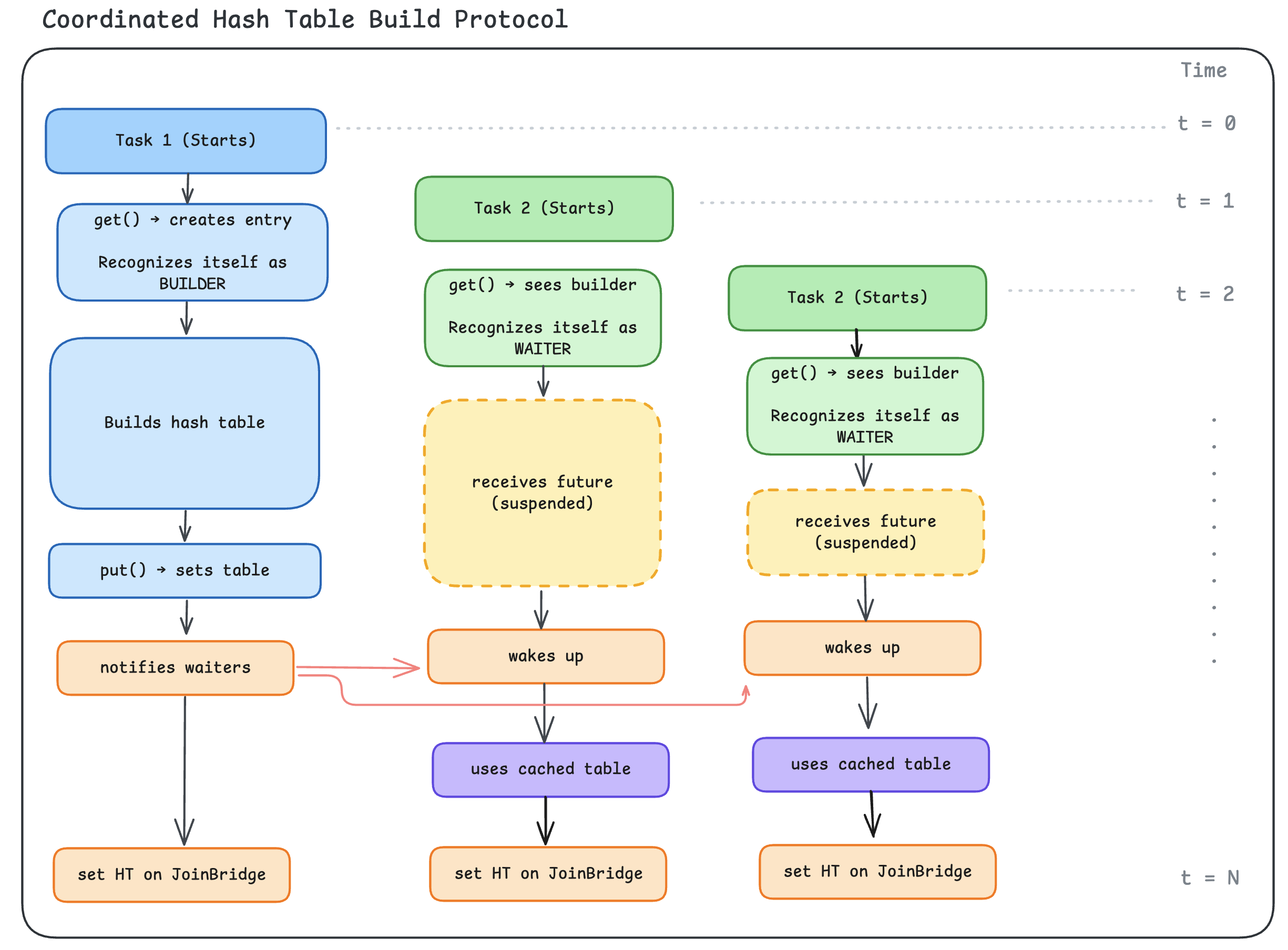

End-to-end join execution

Join execution has three phases: build, synchronization, and probe. All cache-specific coordination occurs during the build phase, where a task either constructs, waits for, or retrieves the hash table. The synchronization and probe phases continue through the existing HashJoinBridge and HashProbe paths without a separate cache-specific implementation.

Step 1: Build or retrieve the table

For Velox-managed builds, each task takes one of three paths:

• Builder task: The first task to call get() for a cache key becomes the builder. Every driver in that task builds its normal partial table. The drivers synchronize through the existing HashJoinBridge peer coordination, and the last driver merges the partial tables before calling HashTableCache::put().
• Waiter task: A task that encounters an incomplete entry owned by another task receives a ContinueFuture, transitions to kWaitForBuild, and suspends until the builder calls put(). Once notified, it calls noMoreInput(), retrieves the completed table, and passes it directly to its local HashJoinBridge without constructing a table.
• Cache hit: A task arriving after buildComplete becomes true skips the wait and immediately passes the cached table to its join bridge. HashBuild reports these outcomes through the hashtable.cacheHit and hashtable.cacheMiss runtime statistics.

Spark with Gluten follows a related external-build path:

1. Spark constructs the build-side table during BroadcastExchange, before probe-side joins run.
2. The driver serializes and broadcasts the table. Each executor deserializes it as a native Velox object identified by a stable buildHashTableId.
3. Gluten checks exist() and, when necessary, calls add() to register the completed table.

Velox-managed and externally built tables converge on the same cache-hit and probe path.

Step 2: Synchronize through HashJoinBridge

HashJoinBridge remains the handoff point between the build and probe sides of each task. Whether the table was built locally or retrieved from the cache, HashBuild calls joinBridge.setHashTable() to notify the probe operators that the table is ready. The cache coordinates across tasks; the bridge continues to coordinate within one task.

Step 3: Probe the shared table

HashProbe takes the table from its local bridge and executes normally. The table is held by shared_ptr, so references in the cache, bridge, and active probe operators keep it alive while it is being scanned. Reuse changes table ownership and construction, not hash lookup semantics.

Memory ownership and lifetime

A cached table must outlive the task that built it because later tasks in the same query may reuse it. Allocating it from the builder operator's task pool would tie the table to a lifetime that ends too early.

Pool hierarchy

Query Pool
├── Task 1 Pool (builder may finish first)
│   └── Operator Pool
└── cached_table_<key> Pool
    └── Cached BaseHashTable and partial-table allocations

HashTableCache::get() creates tablePool as a thread-safe leaf child of the query pool. All builder drivers allocate their partial tables from this shared pool. The completed table therefore remains accounted to the query rather than to any individual task and can survive builder-task completion.

Shared ownership

Without caching, the completed hash table can be transferred to HashJoinBridge with unique ownership. With caching enabled, the entry retains a shared_ptr<BaseHashTable> and passes a copy to the bridge. Probe operators can hold their own references without preventing the cache from serving other tasks.

Query cleanup

When get() creates an entry, it registers a release callback on QueryCtx. Query teardown calls drop() before the query pool is destroyed. drop() removes the entry under the mutex, then resets the table outside the lock. This ordering releases cached allocations before their parent pool disappears and avoids dangling pool references.

Failure recovery

The builder/waiter protocol requires an explicit failure path. If a builder runs out of memory or otherwise closes before calling put(), an incomplete entry with buildComplete == false must not remain in the process-wide cache. Otherwise, every later task becomes a waiter on a future that no thread can fulfill, effectively poisoning the cache key for that worker.

Recovery has two parts:

1. HashBuild::close() detects that the operator belongs to the builder task and that publication never completed, then calls HashTableCache::drop().
2. drop() removes the incomplete entry and fulfills its pending promises outside the cache mutex.

Waking a waiter does not imply success. The waiter resumes in receivedCachedHashTable(), observes that buildComplete is still false on its retained entry, and fails with a diagnostic error rather than hanging. Because the global entry has already been removed, a later retry can create a fresh entry and become the new builder.

This distinction is important: a promise communicates that a wait condition changed, not that the operation necessarily succeeded. buildComplete remains the source of truth. Operational logging around builder election, waiting, publication, wakeup, reuse, and failure helps distinguish normal cache misses from waiters released after an abandoned build.

Failure cleanup should also validate the builder identity. If several drivers from a failed builder close concurrently, a stale driver must not remove a replacement entry created by a retry for the same key. Query-lifetime cleanup can remain unconditional, while failed-builder cleanup can supply the expected builder task ID.

Further optimization: Avoiding redundant source reads

Eliminating table construction is only part of the build-side savings. A waiter or cache-hit task must also avoid reading input that it will never use. This requires resolving the cache state before the driver pulls from the upstream scan or exchange.

Two mechanisms provide this behavior:

1. Exchange-source initialization can be deferred until the driver determines that upstream output is required. This lazy path was introduced in Velox pull request #15768.
2. A waiter enters kWaitForBuild, while a cache hit completes HashBuild without requesting input. The driver checks the downstream operator's blocked state and input requirements before calling the upstream operator's getOutput().

As a result, waiter and late-arrival tasks do not fetch build-side splits or initiate exchange reads. They avoid both redundant hash-table construction and the associated storage and network I/O.

API evolution and integrations

The initial cache API centered on Velox-owned builds: get() reserves an entry and put() completes it. The externally contributed Velox pull request #17662 added add() and exist() so Gluten could inject a pre-built table while preserving the original builder/waiter invariants.

The separation is deliberate. put() completes a reserved entry and wakes its waiters; add() inserts a table that was already completed elsewhere. Both paths produce the same cache-hit behavior for HashBuild, but their creation and ownership contracts remain explicit.

Limitations and future work

Eviction

Cache eviction is not currently supported. Entries remain until query teardown calls drop(). A memory-pressure-driven policy would need to address:

1. Tracking memory held by cached tables.
2. Selecting entries for eviction, for example by recency or size.
3. Preserving active probes that still hold shared references.
4. Providing a rebuild path for tasks arriving after eviction.

drop() already provides an entry-removal primitive, but eviction also needs a clear contract with memory arbitration and active table consumers.

Spilling

Cached tables cannot currently spill. HashBuild::canSpill() and HashBuild::canReclaim() return false when caching is enabled. Spilling clears or reconstructs table state, which conflicts with sharing one stable table across builder, waiter, and probe tasks.

Broadcast joins are generally selected only when the build side is expected to fit in memory. Larger inputs should use a partitioned join with spilling enabled. Spill-aware caching would need to define whether a table can be reclaimed while probe operators retain references and how later tasks recover or rebuild the evicted state.

Mutable hash tables

Cached tables are shared and must be treated as immutable. Some right-side join semantics record per-row probe state in the build table. Such paths cannot safely reuse one table across tasks. Engines enabling the cache must restrict it to compatible join types; library-level validation of these restrictions is an area for further hardening.

Conclusion

Broadcast joins are a substantial part of analytical workloads because they avoid shuffling the large probe side. Hash table caching makes these joins more efficient in materialized execution engines by changing broadcast-table construction from once per task to once per executor.

The process-wide cache elects one builder, suspends concurrent waiters, and routes completed tables through each task's existing HashJoinBridge. Cache state is resolved before upstream input is pulled, allowing reuse to eliminate both repeated construction and unnecessary storage or exchange I/O. A query-scoped pool and shared ownership allow the table to outlive its builder task without escaping memory accounting.

Explicit abandoned-build recovery completes the coordination protocol: failed builders remove incomplete entries and wake waiters instead of leaving them blocked indefinitely. The external insertion API extends the same reuse path to engines such as Gluten while keeping externally built tables separate from Velox's builder/waiter contract.

Together, these mechanisms preserve the low-shuffle advantage of broadcast joins while reducing their CPU, memory-bandwidth, storage, and network costs.
